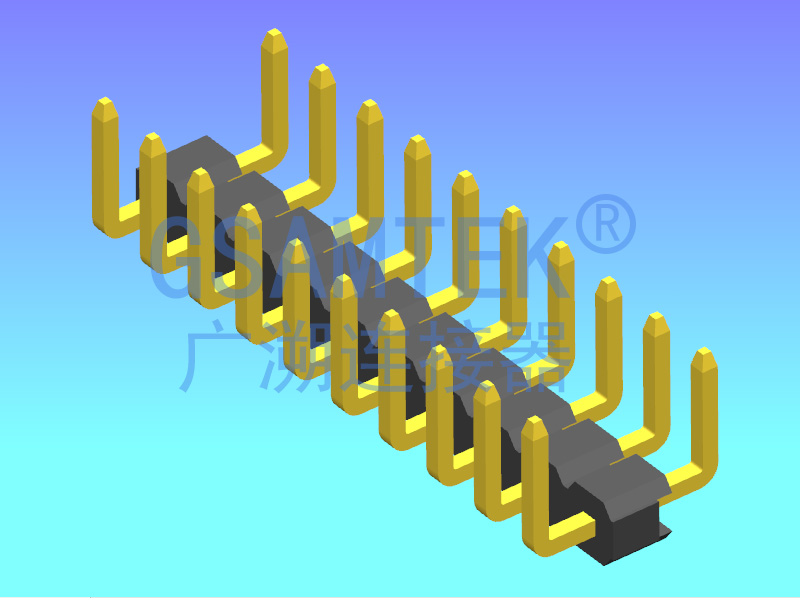

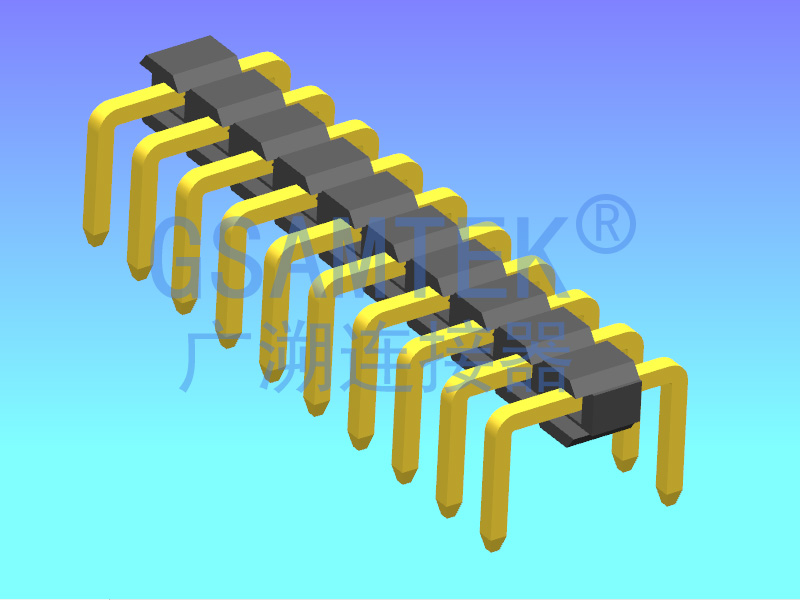

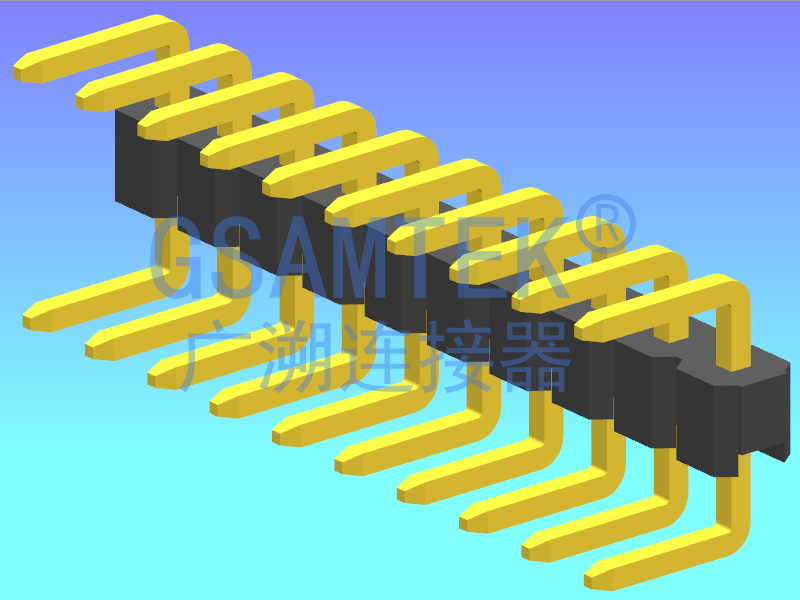

單排U型排針PH2.00 H2.0 W2.0
產品分類：間距2.0mm
PH2.00排針：
PIN 數：1*2P~1x40P
塑膠高 H：2.0mm
排 數：單排、
折彎類型：U型
材 質：PBT/PA6T/PA9T/LCP
四 方 針：0.50mm
詳細介紹
&
Material:
Contact Material: Brass
Contact plating: Au or Sn Over30-50u" Ni
Insulator Material: Black Polyester UL94V-0
Standard: PBT/PA6T/PA9T/LCP+30%G.F
Electrical:
Current rating: 2.0Amps/contact max.
Contact resistance: ≤20mΩ/contact
Insulation resistance: ≥1000MΩ at V=100V
Withstanding Voltage: 500V AC/minute
Mechanical:
Operaing temperature: -40°C to +105°C
Reflow soldering temperature: 260±5°C,10s
